直流机架式电源

Sorensen直流机架式电源主要包括以下几个系列：

• DLM 600 系列

• XG 850 系列

• XG 1500 系列

• XG 1700 系列

• XFR 系列

• DCS 系列

• DLM 3&4kW 系列

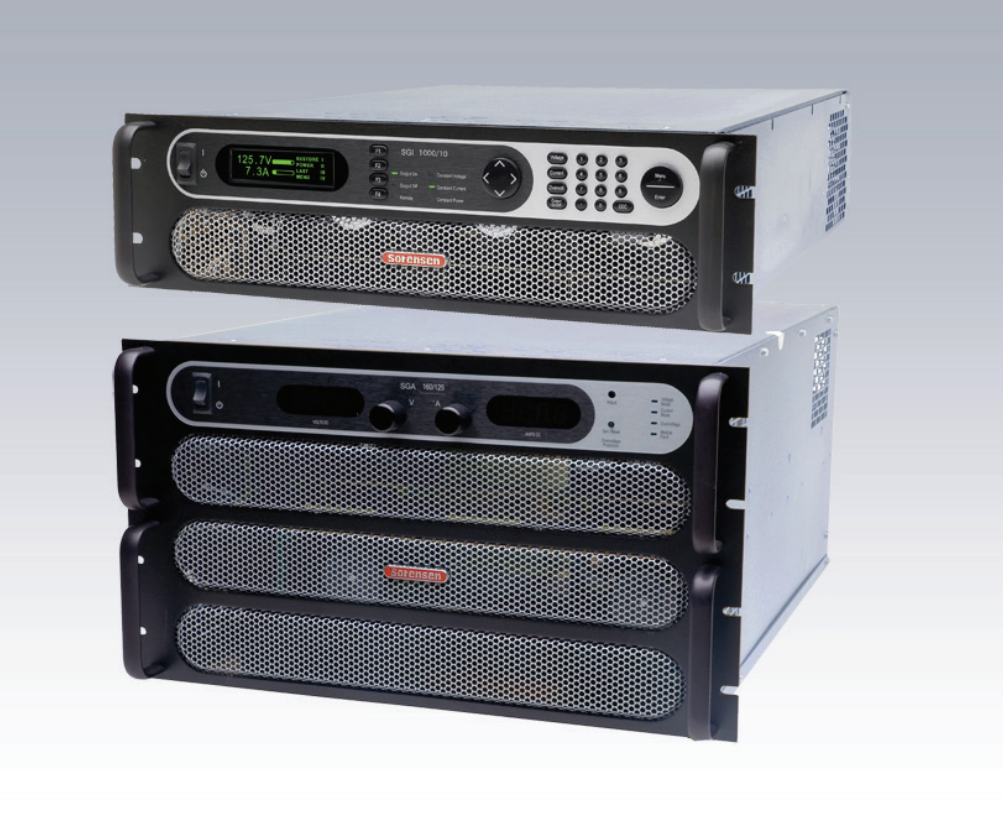

• SG 系列

• SFA 系列

• ASD 系列

做到了高功率密度，近似现行纹波&噪声（纹波低至2.5mV，噪声低至15mV），高可靠性，丰富的数字和模拟接口选项等各种高性能指标。

如下是DCS系列产品参数：

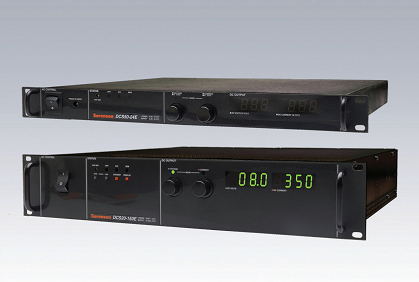

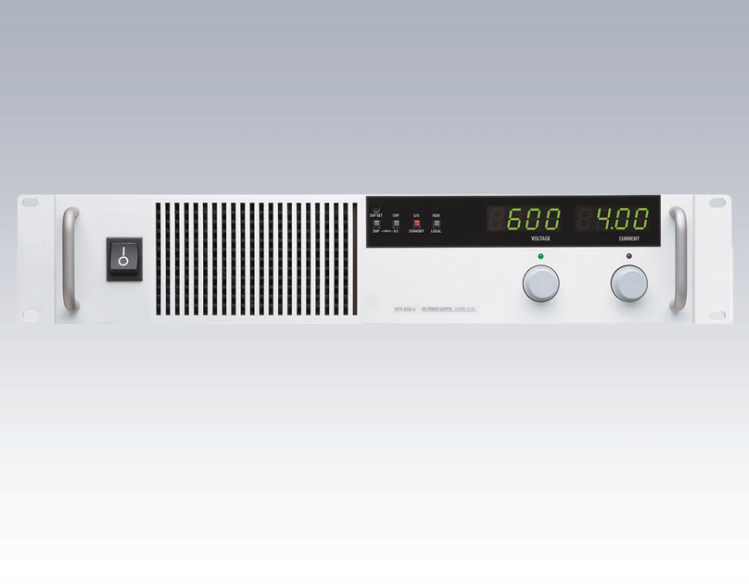

DCS 系列概述

DCS 系列的 1 kW、1.2 kW 和 3 kW 程控电源均采用独特的封装技术，可在额定输出电压和电流范围内的任何电压/电流组合条件下，持续供应满输出功率（1 kW，1.2 kW 或 3 kW）。其外型虽然轻巧，但电源供应可靠性高，可长时间连续使用。

DCS 电源系列具有易于使用的前面板和 10-转电位计，可对同时显示的电压和电流设置进行调节。 LED 指示灯显示过温、远程编程、关闭和过压保护，以及状态和恒定电压/电流模式操作。 DCS 3 kW 型号能提供输出待机模式的按钮控制、OVP 复位，远程/本地编程，以及电压、电流和 OVP 设定点的状态预览等功能。

Sorensen DCS 系列产品也可以远程控制。 该系列产品其具备标准的四种模拟控制模式以及隔离模拟控制功能（选项）。DCS 也通过 IEEE488.2 GPIB（选件）或符合 LXI 标准的以太网（选件）实现计算机控制。

主要特点与优势：

宽广的电压范围
直流电压水平从 0-8 V 到 0-600 V；电流水平从 1.7 A 到 350 A

供两个设备使用的主/从并行电缆

5 年质保

远程编程

• 可选择的电压、电流和 OVP 远程编程
• 可通过符合 LXI 标准的以太网 LAN/RS-232C（M130）进行 16 位编程
• 可通过 IEEE-488.2/RS-232C（M9C 选件）进行 12 位隔离模拟程控（选件 M51）
• 多通道从接口（M85 或 M131 选件）

软件

• 适用于 M130 选件的 IVI-com 驱动程序
• 用于 M9C 选件 的 Labwindows CVI 驱动程序
• 用于 M9C 选件的 Labview 驱动程序

• Sorensen DCS 系列规格

  Common
  Meter Accuracy	1% of full scale + 1 count
  Max. Voltage Differential from Output to Safety Ground	150 VDC
  Remote Start/Stop and Interlock	TTL compatible input or 12-250 VAC (12-130 VDC) or a contact closure
  Cooling	Internal fan, over temperature shutdown if internal heat sink exceeds set temperature
  Remote Sense	The maximum allowed sense line drop is 4V per line (2V on the DCS 8/10V 1 kW/1.2 kW models and 1V/line for all 3 kW models). Line drop subtracts from the maximum available output voltage at full rated power.
  Remote Programming	Enabled via external jumper on rear panel connector J3
  Overvoltage Protection	Crowbar type adjustable from 5-110% of rated output using front panel control (local or remote program selectable via J3 jumper)
  Remote Analog Programming Linearity	Typical error is less an 0.5% setting. Accuracy is 1% of rated output.
  Regulatory	Certified to UL/CSA 61010 (Not DCS 3K) and IEC/EN 61010-1 CE Compliant (LVD and EMC directive)

  Input: Voltage and Frequency
  Output Power	200 - 250 VAC	100 - 132 VAC	190 - 250 VAC
  1kW	single phase, 8A typical, 47- 63 Hz	single phase, 15A typical, 47-63 Hz, internal jumper selectable
  1.2kW	single phase, 9A typical, 47-63 Hz	single phase, 18A typical, 47-63 Hz, internal jumper selectable
  3kW	single-phase, 20A, 47- 63Hz.		three phase, 14A, 47-63Hz.

  Output: Voltage and Current
  1kW Model	Voltage	Current
  DCS 8-125E	0 - 8	0 - 125
  DCS 10-100E	0 - 10	0 - 100
  DCS 20-50E	0 - 20	0 - 50
  DCS 33-33E	0 - 33	0 - 33
  DCS 40-25E	0 - 40	0 - 25
  DCS 50-20E	0 - 50	0 - 20
  DCS 60-18E	0 - 60	0 - 18
  DCS 80-13E	0 - 80	0 - 13
  DCS 100-10E	0 - 100	0 - 10
  DCS 150-7E	0 - 150	0 -7
  DCS 300-3.5E	0 - 300	0 - 3.5
  DCS 600-1.7E	0 - 600	0 - 1.7
  1.2kW Model	Voltage	Current
  DCS 8-140E	0 - 8	0 - 140
  DCS 10-120E	0 - 10	0 - 120
  DCS 20-60E	0 - 20	0 - 60
  DCS 33-36E	0 - 33	0 - 36
  DCS 40-30E	0 - 40	0 - 30
  DCS 50-24E	0 - 50	0 - 24
  DCS 60-20E	0 - 60	0 - 20
  DCS 80-15E	0 - 80	0 - 15
  DCS 100-12E	0 - 100	0 - 12
  DCS 150-8E	0 - 150	0 - 8
  DCS 300-4E	0 - 300	0 - 4
  3kW Model	Voltage	Current
  DCS 8-350E	0 - 8	0 - 350
  DCS 12-250E	0 - 12	0 - 250
  DCS 20-150E	0 - 20	0 - 150
  DCS 40-75E	0 - 40	0 - 75
  DCS 55-55E	0 - 55	0 - 55
  DCS 60-50E	0 - 60	0 - 50
  DCS 80-37E	0 - 80	0 - 37
  DCS 150-20E	0 - 150	0 - 20

  Output
  Voltage Resolution	0.02%
  Ripple (mV rms or p-p)	See table
  Regulation Line	For input voltage variation over the AC input voltage range, with constant rated load.
  Load	For 0-100% load variation, with constant nominal line voltage.
  Voltage	0.1%
  Current	0.1%
  Transient Response	Typically recovers in 500 μs (1 & 1.2 kW) or 1ms (3k W) to 1% of steady-state output voltage (within 1% of Vmax) for 70-100% or 100-70% load change.
  Stability	±0.05% of maximum voltage or current over 8 hours after 30 minute warm-up time at fixed line, load and temperature
  Efficiency	See table below Temperature Coefficient: 0.02%/°C of maximum output voltage; 0.03%/°C of maximum output current. Change in output per °C change in ambient temperature, with constant line and load

  Physical
  Dimensions	Width: 19” (482 mm) W, Depth 17.52” (445 mm) Height: 1 kW and 1.2 kW: 1U or 1.72” (43 mm) 3 kW: 2U or 3.46” (87 mm)

  Weight & Shipping Weight
  Weight	1 kW and 1.2 kW: 19 lbs. ( 8.6 kg)  3 kW: 33 lbs. (15 kg)
  Shipping Weight	1 kW and 1.2 kW: 24 lbs. (10.9 kg)  3 kW: 42 lbs. (19 kg)

  Environmental
  Operating Temperature	0°C to 50°C (no derating)
  Storage Temperature	-55°C to 85°C
  Humidity Range	0 to 80% RH, non condensing

  Programming Specifications
  DCS Series 1 kW	Programming Accuracy M130/M131/M9C/M85 Options
  	Voltage 0.1% +	Current 0.1% +	OVP 0.5% +
  DCS 8-125E	8mV	500mA	44mV
  DCS 10-100E	10mV	400mA	55mV
  DCS 20-50E	20mV	200mA	110mV
  DCS 33-33E	33mV	132mA	182mV
  DCS 40-25E	40mV	100mA	220mV
  DCS 50-20E	50mV	80mA	275mV
  DCS 60-18E	60mV	72mA	330mV
  DCS 80-13E	80mV	52mA	440mV
  DCS 100-10E	100mV	40mA	550mV
  DCS 150-7E	150mV	20mA	825mV
  DCS 300-3.5E	300mV	15mA	1650mV
  DCS 600-1.7E	600mV	6.8mA	3300mV

  DCS Series 1.2 kW	Programming Accuracy M130/M131/M9C/M85 Options
  	Voltage 0.1% +	Current 0.1% +	OVP 0.5% +
  DCS 8-140E	8mV	560mA	44mV
  DCS 10-120E	10mV	480mA	55mV
  DCS 20-60E	20mV	240mA	110mV
  DCS 33-36E	23mV	144mA	182mV
  DCS 40-30E	40mV	120mA	220mV
  DCS 50-24E	50mV	96mA	275mV
  DCS 60-20E	60mV	80mA	330mV
  DCS 80-15E	80mV	60mA	440mV
  DCS 100-12E	100mV	48mA	550mV
  DCS 150-8E	150mV	32mA	825mV
  DCS 300-4E	300mV	16mA	1650mV

  DCS Series 3 kW	Programming Accuracy M130/M131/M9C/M85 Options
  	Voltage 0.1% +	Current 0.1% +	OVP 0.5% +
  DCS 8-350E	8mV	1400mA	44mV
  DCS 12-250E	12mV	1000mA	66mV
  DCS 20-150E	20mV	600mA	110mV
  DCS 40-75E	40mV	300mA	220mV
  DCS 55-55E	55mV	220mA	303mV
  DCS 60-50E	60mV	200mA	330mV
  DCS 80-37E	80mV	148mA	440mV
  DCS 150-20E	150mV	80mA	825mV

  Read-back Specifications
  DCS Series 1 kW	Readback Accuracy
  	Voltage 0.1% +	Current 0.1% +
  DCS 8-125E	12mV	500mA
  DCS 10-100E	15mV	400mA
  DCS 20-50E	30mV	200mA
  DCS 33-33E	50mV	132mA
  DCS 40-25E	60mV	100mA
  DCS 50-20E	75mV	80mA
  DCS 60-18E	90mV	72mA
  DCS 80-13E	120mV	52mA
  DCS 100-10E	150mV	40mA
  DCS 150-7E	225mV	28mA
  DCS 300-3.5E	450mV	14mA
  DCS 600-1.7E	900mV	7mA

  DCS Series 1.2 kW	Readback Accuracy
  	Voltage 0.1% +	Current 0.1% +
  DCS 8-140E	12mV	560mA
  DCS 10-120E	15mV	480mA
  DCS 20-60E	30mV	240mA
  DCS 33-36E	50mV	144mA
  DCS 40-30E	60mV	120mA
  DCS 50-24E	75mV	95mA
  DCS 60-20E	90mV	80mA
  DCS 80-15E	120mV	60mA
  DCS 100-12E	150mV	48mA
  DCS 150-8E	225mV	32mA
  DCS 300-4E	450mV	16mA

  DCS Series 3 kW	Readback Accuracy
  	Voltage 0.1% +	Current 0.1% +
  DCS 8-350E	12mV	1400mA
  DCS 12-250E	18mV	1000mA
  DCS 20-150E	30mV	600mA
  DCS 40-75E	60mV	300mA
  DCS 55-55E	83mV	220mA
  DCS 60-50E	90mV	200mA
  DCS 80-37E	120mV	148mA
  DCS 150-20E	225mV	80mA

  Output
  DCS Series 1 kW	Output Power
  	Voltage VDC	Current ADC @ 50°C
  DCS 8-125E	0-8	0-125
  DCS 10-100E	0-10	0-100
  DCS 20-50E	0-20	0-50
  DCS 33-33E	0-33	0-33
  DCS 40-25E	0-40	0-25
  DCS 50-20E	0-50	0-20
  DCS 60-18E	0-60	0-18
  DCS 80-13E	0-80	0-13
  DCS 100-10E	0-100	0-10
  DCS 150-7E	0-150	0-7
  DCS 300-3.5E	0-300	0-3.5
  DCS 600-1.7E	0-600	0-1.7

  DCS Series 1.2 kW	Output Power
  	Voltage VDC	Current ADC @ 50°C
  DCS 8-140E	0-8	0-140
  DCS 10-120E	0-10	0-120
  DCS 20-60E	0-20	0-60
  DCS 33-36E	0-33	0-36
  DCS 40-30E	0-40	0-30
  DCS 50-24E	0-50	0-24
  DCS 60-20E	0-60	0-20
  DCS 80-15E	0-80	0-15
  DCS 100-12E	0-100	0-12
  DCS 150-8E	0-150	0-8
  DCS 300-4E	0-300	0-4

  DCS Series 3 kW	Output Power
  	Voltage VDC	Current ADC @ 50°C
  DCS 8-350E	0-8	0-350
  DCS 12-250E	0-12	0-250
  DCS 20-150E	0-20	0-150
  DCS 40-75E	0-40	0-75
  DCS 55-55E	0-55	0-55
  DCS 60-50E	0-60	0-50
  DCS 80-37E	0-80	0-37
  DCS 150-20E	0-150	0-20

  Output
  DCS Series 1 kW	Constant Voltage Mode
  	Ripple (rms) mV	Noise** (p-p) mV	Transient Response time μs (typ)
  DCS 8-125E	4	60	500
  DCS 10-100E	4	60	500
  DCS 20-50E	4	60	500
  DCS 33-33E	4	60	500
  DCS 40-25E	4	60	500
  DCS 50-20E	4	60	500
  DCS 60-18E	4	60	500
  DCS 80-13E	4	60	500
  DCS 100-10E	4	60	500
  DCS 150-7E	12	160	500
  DCS 300-3.5E	20	200	500
  DCS 600-1.7E	50	300	500

  DCS Series 1.2 kW	Constant Voltage Mode
  	Ripple (rms) mV	Noise** (p-p) mV	Transient Response time μs (typ)
  DCS 8-140E	5	60	500
  DCS 10-120E	5	60	500
  DCS 20-60E	5	60	500
  DCS 33-36E	5	60	500
  DCS 40-30E	5	60	500
  DCS 50-24E	5	60	500
  DCS 60-20E	5	60	500
  DCS 80-15E	5	60	500
  DCS 100-12E	10	60	500
  DCS 150-8E	15	160	500
  DCS 300-4E	25	200	500

  DCS Series 3 kW	Constant Voltage Mode
  	Ripple (rms) mV	Noise** (p-p) mV	Transient Response time μs (typ)
  DCS 8-350E	15	100	1000
  DCS 12-250E	10	100	1000
  DCS 20-150E	10	100	1000
  DCS 40-75E	20	100	1000
  DCS 55-55E	20	100	1000
  DCS 60-50E	20	100	1000
  DCS 80-37E	20	100	1000
  DCS 150-20E	30	200	1000
  ** Typical P-P noise and ripple (20Hz to 20MHz)

  Output
  DCS Series 1 kW	Combined Regulation Line and Load %	Temp Coeff. Voltage %	Voltage Drift  % Vmax (typ)
  DCS 8-125E	0.2	0.02	0.05
  DCS 10-100E	0.2	0.02	0.05
  DCS 20-50E	0.2	0.02	0.05
  DCS 33-33E	0.2	0.02	0.05
  DCS 40-25E	0.2	0.02	0.05
  DCS 50-20E	0.2	0.02	0.05
  DCS 60-18E	0.2	0.02	0.05
  DCS 80-13E	0.2	0.02	0.05
  DCS 100-10E	0.2	0.02	0.05
  DCS 150-7E	0.2	0.02	0.05
  DCS 300-3.5E	0.2	0.02	0.05
  DCS 600-1.7E	0.2	0.02	0.05

  DCS Series 1.2 kW
  	Combined Regulation Line and Load %	Temp Coeff. Voltage %	Voltage Drift  % Vmax (typ)
  DCS 8-140E	0.2	0.02	0.05
  DCS 10-120E	0.2	0.02	0.05
  DCS 20-60E	0.2	0.02	0.05
  DCS 33-36E	0.2	0.02	0.05
  DCS 40-30E	0.2	0.02	0.05
  DCS 50-24E	0.2	0.02	0.05
  DCS 60-20E	0.2	0.02	0.05
  DCS 80-15E	0.2	0.02	0.05
  DCS 100-12E	0.2	0.02	0.05
  DCS 150-8E	0.2	0.02	0.05
  DCS 300-4E	0.2	0.02	0.05

  DCS Series 3 kW
  	Combined Regulation Line and Load %	Temp Coeff. Voltage %	Voltage Drift  % Vmax (typ)
  DCS 8-350E	0.2	0.02	0.05
  DCS 12-250E	0.2	0.02	0.05
  DCS 20-150E	0.2	0.02	0.05
  DCS 40-75E	0.2	0.02	0.05
  DCS 55-55E	0.2	0.02	0.05
  DCS 60-50E	0.2	0.02	0.05
  DCS 80-37E	0.2	0.02	0.05
  DCS 150-20E	0.2	0.02	0.05

  Output
  DCS Series 1 kW	Programming Constraints Voltage Mode
  	Ohms / V	V / V
  DCS 8-125E	625	0-10V = 0-100% V, or 0-5V = 0-100% V
  DCS 10-100E	500
  DCS 20-50E	250
  DCS 33-33E	151.5
  DCS 40-25E	125
  DCS 50-20E	100
  DCS 60-18E	83
  DCS 80-13E	62.5
  DCS 100-10E	50
  DCS 150-7E	33.3
  DCS 300-3.5E	16.67
  DCS 600-1.7E	8.33

  DCS Series 1.2 kW	Programming Constraints Voltage Mode
  	Ohms / V	V / V
  DCS 8-140E	625	0-10V = 0-100% V, or 0-5V = 0-100% V
  DCS 10-120E	500
  DCS 20-60E	250
  DCS 33-36E	151.5
  DCS 40-30E	125
  DCS 50-24E	100
  DCS 60-20E	83
  DCS 80-15E	62.5
  DCS 100-12E	50
  DCS 150-8E	33.3
  DCS 300-4E	16.67

  DCS Series 3 kW	Programming Constraints Voltage Mode
  	Ohms / V	V / V
  DCS 8-350E	625	0-10V = 0-100% V, or 0-5V = 0-100% V
  DCS 12-250E	416.7
  DCS 20-150E	250
  DCS 40-75E	125
  DCS 55-55E	90.9
  DCS 60-50E	83
  DCS 80-37E	62.5
  DCS 150-20E	33.3

  Output
  DCS Series 1 kW	Constant Current Mode*
  	Regulation line and load % combined	Ripple (rms)** mA
  DCS 8-125E	0.2	160
  DCS 10-100E	0.2	128
  DCS 20-50E	0.2	25
  DCS 33-33E	0.2	10
  DCS 40-25E	0.2	7
  DCS 50-20E	0.2	7
  DCS 60-18E	0.2	6
  DCS 80-13E	0.2	4
  DCS 100-10E	0.2	3
  DCS 150-7E	0.2	2
  DCS 300-3.5E	0.2	1
  DCS 600-1.7E	0.2	1

  DCS Series 1.2 kW	Constant Current Mode*
  	Regulation line and load % combined	Ripple (rms)** mA
  DCS 8-140E	0.2	180
  DCS 10-120E	0.2	153
  DCS 20-60E	0.2	30
  DCS 33-36E	0.2	11
  DCS 40-30E	0.2	9
  DCS 50-24E	0.2	8.5
  DCS 60-20E	0.2	6.6
  DCS 80-15E	0.2	6
  DCS 100-12E	0.2	3.6
  DCS 150-8E	0.2	2.3
  DCS 300-4E	0.2	1.2

  DCS Series 3 kW	Constant Current Mode*
  	Regulation line and load % combined	Ripple (rms)** mA
  DCS 8-350E	0.2
  DCS 12-250E	0.2
  DCS 20-150E	0.2
  DCS 40-75E	0.2
  DCS 55-55E	0.2
  DCS 60-50E	0.2
  DCS 80-37E	0.2
  DCS 150-20E	0.2

  Output
  DCS Series 1 kW
  	Temp. Coeff. % °C (typ)	Current Drift %| out Max (typ.)
  DCS 8-125E	0.03	0.05
  DCS 10-100E	0.03	0.05
  DCS 20-50E	0.03	0.05
  DCS 33-33E	0.03	0.05
  DCS 40-25E	0.03	0.05
  DCS 50-20E	0.03	0.05
  DCS 60-18E	0.03	0.05
  DCS 80-13E	0.03	0.05
  DCS 100-10E	0.03	0.05
  DCS 150-7E	0.03	0.05
  DCS 300-3.5E	0.03	0.05
  DCS 600-1.7E	0.03	0.05

  DCS Series 1.2 kW
  	Temp. Coeff. % °C (typ)	Current Drift %| out Max (typ.)
  DCS 8-140E	0.03	0.05
  DCS 10-120E	0.03	0.05
  DCS 20-60E	0.03	0.05
  DCS 33-36E	0.03	0.05
  DCS 40-30E	0.03	0.05
  DCS 50-24E	0.03	0.05
  DCS 60-20E	0.03	0.05
  DCS 80-15E	0.03	0.05
  DCS 100-12E	0.03	0.05
  DCS 150-8E	0.03	0.05
  DCS 300-4E	0.03	0.05

  DCS Series 3 kW
  	Temp. Coeff. % °C (typ)	Current Drift %| out Max (typ.)
  DCS 8-350E	0.03	0.05
  DCS 12-250E	0.03	0.05
  DCS 20-150E	0.03	0.05
  DCS 40-75E	0.03	0.05
  DCS 55-55E	0.03	0.05
  DCS 60-50E	0.03	0.05
  DCS 80-37E	0.03	0.05
  DCS 150-20E	0.03	0.05

  Output
  DCS Series 1 kW	Programming Constants, Current Mode
  	Ohms/A	V/A
  DCS 8-125E	40	0-10V = 0-100% |a or 0-5V = 0-100% |a
  DCS 10-100E	50
  DCS 20-50E	100
  DCS 33-33E	151.5
  DCS 40-25E	200
  DCS 50-20E	250
  DCS 60-18E	277.8
  DCS 80-13E	384.6
  DCS 100-10E	500
  DCS 150-7E	714.3
  DCS 300-3.5E	1428.6
  DCS 600-1.7E	2941.2

  DCS Series 1.2 kW	Programming Constants, Current Mode
  	Ohms/A	V/A
  DCS 8-140E	35.7	0-10V = 0-100% |a or 0-5V = 0-100% |a
  DCS 10-120E	41.7
  DCS 20-60E	83.3
  DCS 33-36E	138.9
  DCS 40-30E	166.7
  DCS 50-24E	208.3
  DCS 60-20E	250.0
  DCS 80-15E	333.3
  DCS 100-12E	416.7
  DCS 150-8E	625.0
  DCS 300-4E	1250.0

  DCS Series 3 kW	Programming Constants, Current Mode
  	Ohms/A	V/A
  DCS 8-350E		0-10V = 0-100% |a or 0-5V = 0-100% |a
  DCS 12-250E
  DCS 20-150E
  DCS 40-75E
  DCS 55-55E
  DCS 60-50E
  DCS 80-37E
  DCS 150-20E

  Output
  DCS Series 1 kW	Input Current, A Nominal		Efficiency % (Typ.)
  	230V Single Phase	208V Three Phase
  DCS 8-125E	8	N/A	82
  DCS 10-100E	8	N/A	82
  DCS 20-50E	8	N/A	82
  DCS 33-33E	8	N/A	84
  DCS 40-25E	8	N/A	84
  DCS 50-20E	8	N/A	84
  DCS 60-18E	8	N/A	86
  DCS 80-13E	8	N/A	86
  DCS 100-10E	8	N/A	86
  DCS 150-7E	8	N/A	86
  DCS 300-3.5E	8	N/A	86
  DCS 600-1.7E	9.5	N/A	86

  DCS Series 1.2 kW
  	Input Current, A Nominal		Efficiency % (Typ.)
  	230V Single Phase	208V Three Phase
  DCS 8-140E	9	N/A	82
  DCS 10-120E	9	N/A	82
  DCS 20-60E	9	N/A	82
  DCS 33-36E	9	N/A	84
  DCS 40-30E	9	N/A	84
  DCS 50-24E	9	N/A	84
  DCS 60-20E	9	N/A	85
  DCS 80-15E	9	N/A	85
  DCS 100-12E	9	N/A	85
  DCS 150-8E	9	N/A	85
  DCS 300-4E	9	N/A	85

  DCS Series 3 kW
  	Input Current, A Nominal		Efficiency % (Typ.)
  	230V Single Phase	208V Three Phase
  DCS 8-350E	24	13	82
  DCS 12-250E	26	14	82
  DCS 20-150E	26	14	82
  DCS 40-75E	26	14	86
  DCS 55-55E	26	14	82
  DCS 60-50E	26	14	86
  DCS 80-37E	26	14	86
  DCS 150-20E	26	14	86
  * Typical resolution is 0.02% ** rms ripple typical from 20 Hz to 300 kHz

  J3 Connector
  1	90-250 VAC Remote Shutdown	14	TTL Shutdown
  2	Shutdown Return	15	+12 VDC
  3	OVP Program	16	1 mACurrent Source (OVP)
  4	Remote/Local Status Indicator	17	OVP Indicator
  5	Mode Status Indicator	18	Thermal S/DN Status
  6	Ground	19	0-5V Voltage Monitor
  7	0-5V Current Monitor	20	Remote Voltage Select
  8	Voltage Control	21	1 mA Current Source (V)
  9	Voltage Program Input	22	1 mA Current Source (I)
  10	Current Program Unit	23	1 mA Current Source (I)
  11	Current Control	24	Return
  12	Return Sense	25	POS Output (8-100V Models Only)
  13	POS Sense (8-100V Models Only)
